Mobile Hydraulic Outdoor Scissor Lift 8 To 10m For Building And Repairs

Product Categories

Hunan Jesh Heavy Industry Co.,Ltd

Contact Now

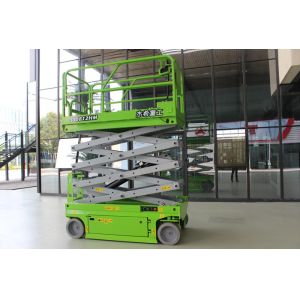

Name: Mobile Hydraulic Outdoor Scissor Lift 8 To 10m For Building And Repairs
Brand: Jesh
Price: 1 USD

Brand Name : Jesh

Model Number : SS0812HM

Certification : CE,ISO,IPAF

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1500pcs per month

Delivery Time : 15 days

Packaging Details : standard factory package

Lift drive / actuation : Hyraulic electric ,DC

Dimensions : Length 2.48m*Width 1.14m*Height 1.82m(platform height up to 8.1m)

Platform extendable : 0.9m

platform width : 1.14m

Max.drive speed : 8.1m

Max.Working height : 10.1m

Max.Platform height : 8.1m

Platform capacity : 450kg

capacity on extension : 120kg

battery : 24v/225ah

Engine : optional for your choose : perkins, Kohler,Deutz,Commins,Yanmar

OEM,ODM : available

Contact Now

Chassis

Unique design of bidirectional retracting scissor arm.
Slide out tray on left and right,easy for maintenance.
Forklift hole on side for loading and discharging.
Unique pothole protection design.
Orbital plane,easy for cleaning.
Unique design of symmetrical steering mechanism with equal turning angle and speed for left and right, allowing stable turning.

Technical Parameters

Model	SS0812HM
Dimentions	Metric
Working Height	10.1m
Platform Height	8.1m
Platform Length	2.27m
Platform Length-Extended	3.17m
Platform Extension	0.9m
Platform Width	1.14m
Height -Unfolded	2.35m
Height-folded	1.82m
Wheelbase	1.87m
Min. Ground Clearance-stowed	10cm
Min. Ground Clearance-Raised	2cm
Productivity
Platform capacity	450kg
Extension platform capacity	120kg
Drive Speed	3.5km/h
Gradeability	25%
Raise/Lower Speed	32/42sec
Turning Radius(Inside/outside)	0/2.1m
Tire	40.5x12.7cm
Power	Electric
Battery	24V/225Ah
Hydraulic Oil Tank Capacity	25L
Machine Total Weight	2550kg
Engine	Optional( Pekins,Kohler,Deutz,Commins,Yanmar)

Mobile Hydraulic Outdoor Scissor Lift 8 To 10m For Building And Repairs

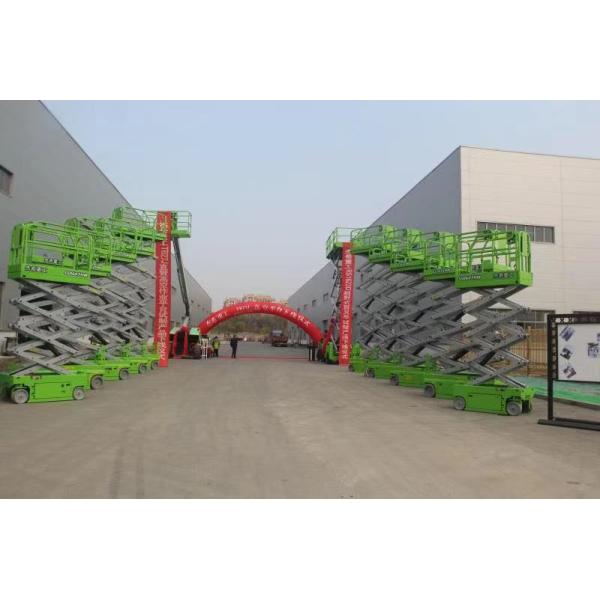

Factory show and customer visit

Mobile Hydraulic Outdoor Scissor Lift 8 To 10m For Building And Repairs

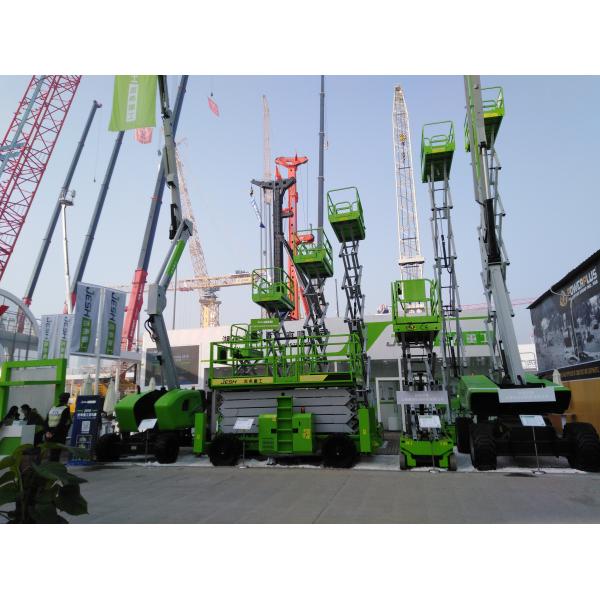

Bauma Exhibition

Mobile Hydraulic Outdoor Scissor Lift 8 To 10m For Building And Repairs
